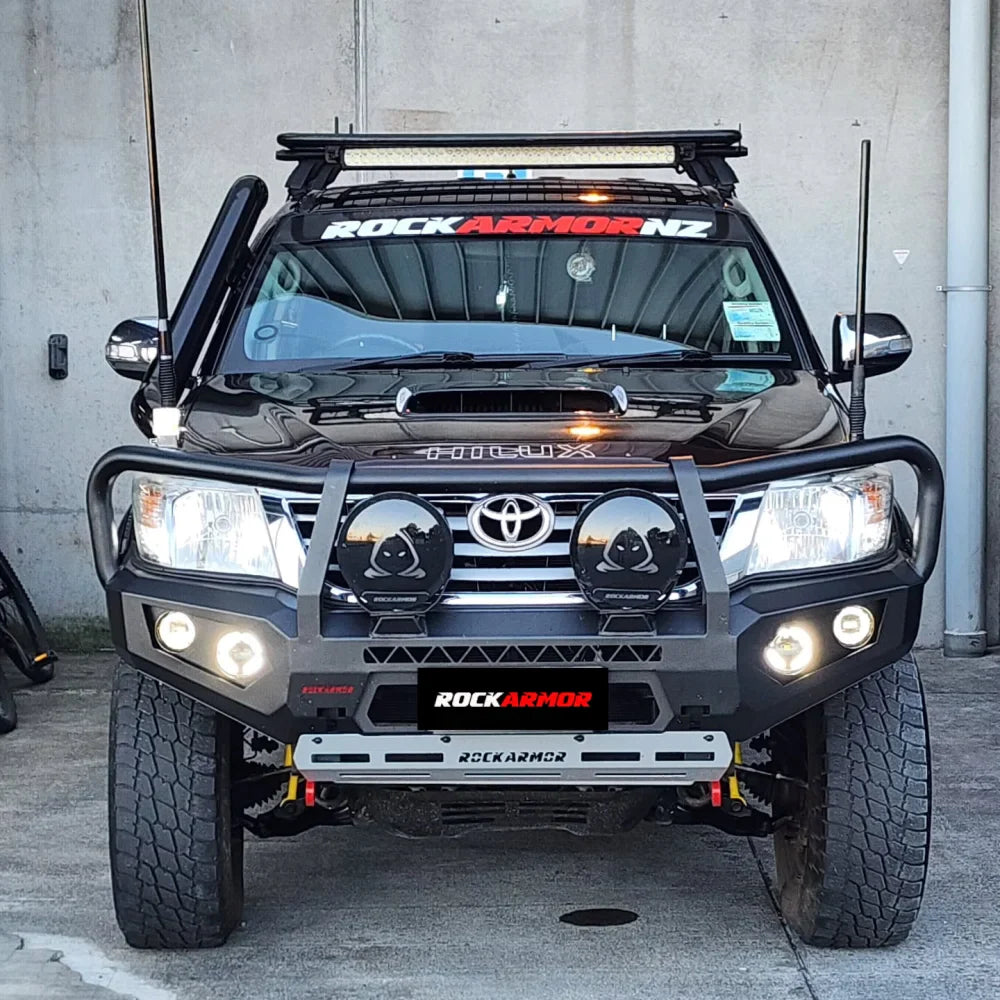

Rockarmor Gt Hoop Steel Bullbar Combo - Toyota Hilux N70 2012-15

ROCKARMOR GT HOOP STEEL BULLBAR COMBO - TOYOTA HILUX N70 2012-15

Designed locally in Australia, Rockarmor's all new GT Bullbar series comes with a modern look, suited towards today's late model vehicles, that require maximum protection, while complementing your vehicle's factory modern aesthetics.

As well as offering your Hilux with maximum frontal protection, The Rockarmor GT bullbar has been designed to improve your Hilux's off road experience with a number of features that include, higher approach angles, Built in Rated Recovery points for off road recoveries, and provisions for vital accessories that includes, electric winches, driving lights & uhf communication. Â

The full bumper replacement Steel bull bar allows you to fit the GT bullbar to your Hilux with out having to cutting the factory bumper. The Rockarmor GT Bullbar, has been engineered to be compatible with your vehicle safety features which include the front safety camera & bumper sensors.

Features & Specifications:Â

• Built in 3.2Tonne Rated Recovery Points
• 52 mm Top cross tube for maximum frontal protection
• Durable 2.8mm High Quality steel construction for maximum protection
• Designed for high approach anglesÂ
• Built in LED FOG lights & LED Indicator, compatible with factory controls
• Extended centre Bash Plate IncludedÂ
• ADR Complied Air bag compatible mounting system
• Factory Sensor & Front Camera CompatibleÂ

• Side under Protection panels Included
• Twin Slotted Antenna Mounts located on top Cross Tube
• Twin Hi-Lift jack pointsÂ
• Front Protection Buffers
• Accommodation for Electric Winch up to 12,000 poundÂ
• Laser cut Holes to accommodate for driving lights
• Shot blasted, Chemical WashedÂ
• Finished off in a high quality black powder coat finishÂ

Rockarmor Steel GT Bullbar (No bumper cut required)

Rockarmor 12,000 pound Winch (wireless controller & synthetic winch rope)Â

Rockarmor 9" LED Phantom Spotlights - (with wiring loom and internal switch)

WHATS IN THE BOX

• MOUNTING HARDWARE
• PHANTOM COVERS
• 2 X LED DRIVING LIGHTS
• WIRING HARNESS WITH INTERNAL SWITCH

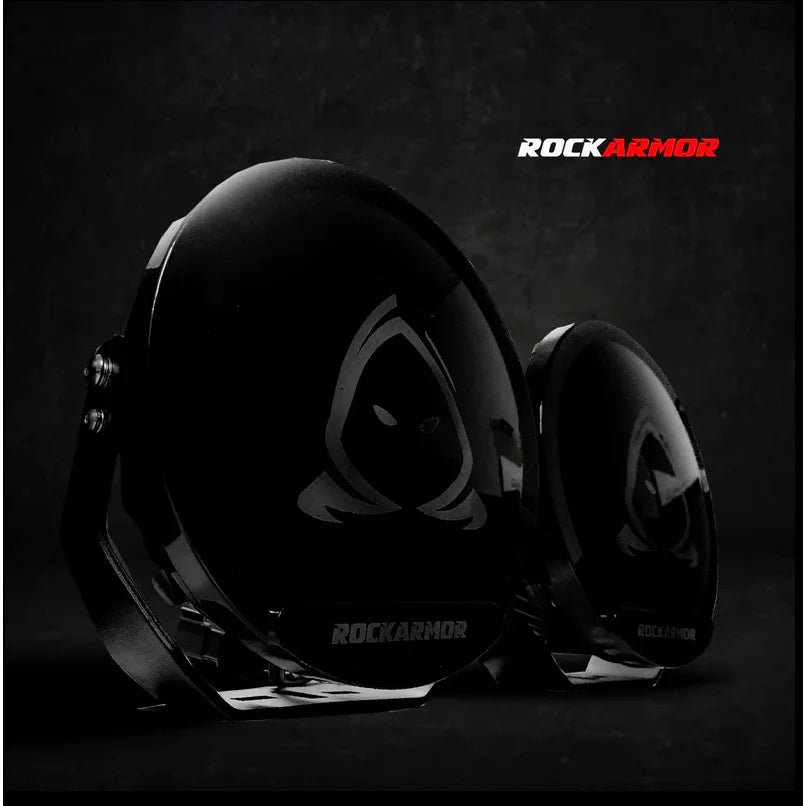

ROCKARMOR PHANTOM 9" LED DRIVING LIGHTSÂ Â

Rockarmor’s latest innovation, the Phantom 9 Lights are rugged off-road champions designed to light up the darkest highways and remote tracks, offering unparalleled performance and durability. Built to withstand the harshest conditions, these lights are dustproof and waterproof, ensuring reliability in any environment! Experience exceptional long-distance visibility, providing you with the confidence to conquer any terrain!

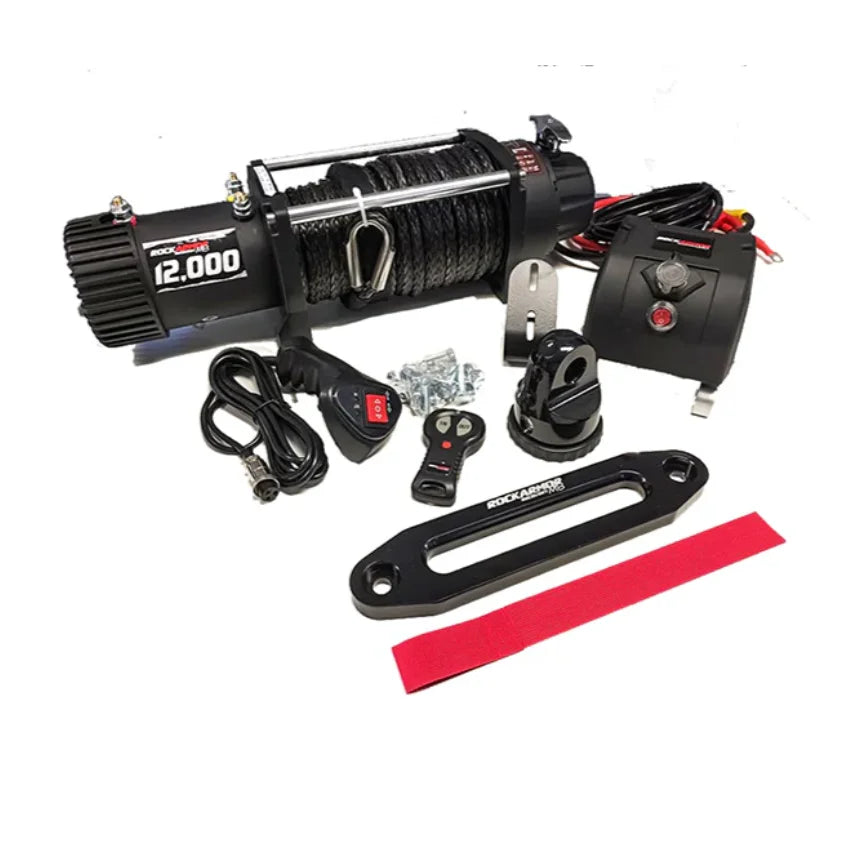

ROCKARMOR RECOVERY M8 12,000 Pound WinchÂ

• 5 Year Manufacturers WarrantyÂ
• 7.2HP MotorÂ
• IP67 Rated (2 Hours Fully Submersible)Â
• Wireless Controller (inbuilt receiver)
• Controller with Extension Lead
• Rockarmor Alloy Hawse FairleadÂ
• Synthetic Winch Rope Pro LinkÂ
• Control Box Mounting BracketÂ
• Hand Saver Strap
• Installation Guide BookÂ

TECHYÂ STUFF

• IP RATING: IP68
• DISTANCE:Â 1 LUX @ 1400 METRES
• POWER: 396 WATTS PER PAIR
• LED TYPE: 33 X OSRAM LEDS
• COLOUR TEMP: 6500K
• LUMENS: 13,000 EFFECTIVE LUMENS
• FRAME: FULLY ADJUSTABLE 60 DEGREE ALUMINIUM FRAME
• LENS: POLYCARBONATE
• COOLING: HIGH SPEED PASSIVE COOLING SYSTEM
• DAY LIGHT RUNNING LIGHT: BUILT IN

Specification

• Installation Guide BookÂ
• Line Pull: Â 5,443kgs / 12,000lbs
• Â Motor:Â Series Wound DC12V / 7.2HPÂ Â
• Gear Train:Â 3 Stage PlanetaryÂ
• Gear Ratio: 216:
• Free Spooling Clutch with Rotating Gear Ring
• IP67 Rated (2 Hours Fully Submersible)
• Synthetic Winch Rope: 9.5mm x 28 metresÂ
• Wireless Receiver: Built into the Control Box
• Isolator Switch:Â Built into the Control BoxÂ
• Drum Size:Â 64mm x 224mm
• Weight of Winch:Â 26kgsÂ
• Mounting Bolt Pattern: 254mm x 114.3mmÂ
• Dimensions:Â 535 X 162 X 170MM
• Warranty: 5 Years Limited Electrical & Mechanical Combo Wieght:120kg

INSTALLATION

Rockarmor New Zealand will not warrant their winch if the following are not followed:

1. The installation of our winches is conducted by an qualified electrician
2. A separate isolation switch be installed to prevent draw from the battery when not in use.
3. Misuse of the winch

Rockarmor New Zealand will not warrant their spotlight if the following are not followed:

1. The installation of our winches is conducted by an qualified electrician
2. Misuse of the spotlight

To comply with NZTA all daytime running lights should be installed separately to your headlights. Also note that the fog lights need to be adjusted to three degrees down.

If your vehicle's suspension is not upgraded to withstand 60-100kgs, we do recommend that you upgrade the suspension, especially in the front of the vehicle to withstand the weight of the Steel Bumper & optional winch (if an electric winch is installed with the bull bar) If your vehicle's suspension is not upgraded, or if you are running factory suspension, your front suspension will sag and the ride will become bumpy which can possibly lead to further damage.Â

We recommend when fitting the bull bar to leave a minimum 10-15mm gap between the bullbar and body of the vehicle. This will allow for movement where the chassis & body move independently.Â
